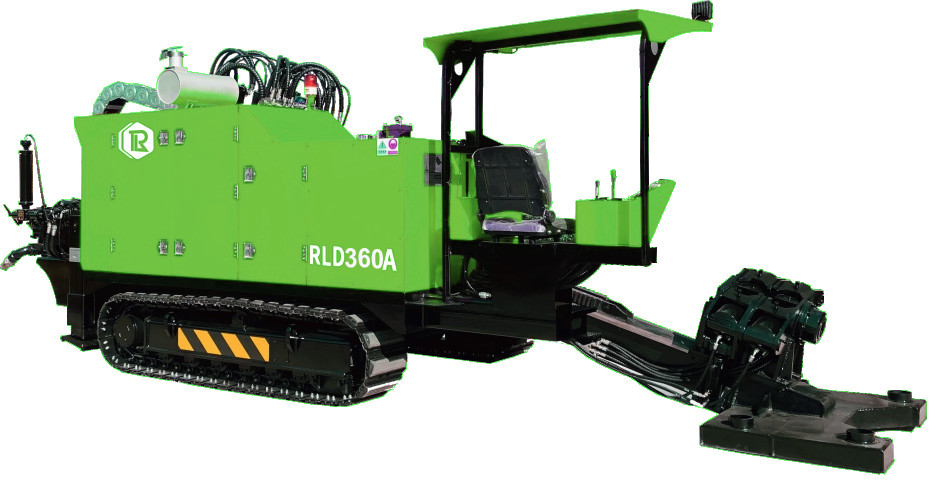

Electric Small HDD Machine 36Tons HDD Directional Drilling Machine

Name: Electric Small HDD Machine 36Tons HDD Directional Drilling Machine
Brand: RUNLINE
SKU: RLD360AJ
Rating: 4.9 (196 reviews)

Product Details

Place of Origin: CHINA

Brand Name: RUNLINE

Model Number: RLD360AJ

Payment & Shipping Terms

Minimum Order Quantity: 1

Delivery Time: 15 days after down payment

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 20 sets per Month

Get Best Price

Product Details

Product Description

Highlight:

Name:	Small HDD Machine	KEYWORDS:	Horizontal Directional Drilling Machine
BRAND:	RUNLINE	Standard:	ISO9001/CE
Orign:	CHINA

Name:	Small HDD Machine
KEYWORDS:	Horizontal Directional Drilling Machine
BRAND:	RUNLINE
Standard:	ISO9001/CE
Orign:	CHINA

Electric Small HDD Machine 36Tons HDD Directional Drilling Machine

Main performance characteristics:

The machine is equipped with Cummins engine, with high efficiency, large power, and strong ability in construction.
It is equipped with PERMCO hydraulic gear pump. Push&pull and rotation hydraulic system adopts advanced series of parallel control technology and the installation firs-class hydraulic components with high efficiency, low consumption and high stability.
The machine is equipped with rotation and push&pull pilot control, and the operation is more portable.
The power head rotation is driven by American high torque Eaton motor, which is stable in performance and achieves infinitely variable speed. Push & pull adopts American Eaton motor and three gears speed regulation.
Driving head reserves reinforced power push & pull force, which expands the scope of drilling construction, and makes it convenient for emergency project.
It is equipped with first class walking hydraulic driving device. Steel track walking is driven by wire control, which is convenient for loading & unloading and transferring.
Operation table adopts man-machine construction manner, which is comfortable for operation, and can greatly reduce workers fatigue level. The loading cab is optional, with AC, broad vision, and comfortable seat.
Equipped with Φ73*3000mm or Φ76*3000mm drill rod, the machine contains medium field area, meeting the requirement for high efficiency construction in small space.
The electric design is reasonable with low failure rate, which is easy to maintain.
The rig shape is advance, and the working efficiency is improved by 30%.
Humanization design: the mechanical arm can greatly improve the working efficiency and reduce labor intensity. The cabinet (with air-con) auto rod-loading device, auto anchor, auto thread oil etc. can be customized.

Technical Specifications:

Engine	153/2200 KW	Dimension (LWH)	6800X2240X2260mm
Max thrust force	360/720 KN	Weight	11 T
Max Pullback force	360/720 KN	Diameter if drill rod	Φ73 mm
Max Torque	13000/15000N.M	Length of drill rod	3 m
Max rotary speed	138 rpm	Max dia of pullback pipe	1200 mm
Max push& pull speed	38 m/min	Max construction length	450 m
Max mud pump flow	400 L/min	Incidence angle	11~20°
Max mud pressure	10 ± 0.5 Mpa	Climbing angle	15°
