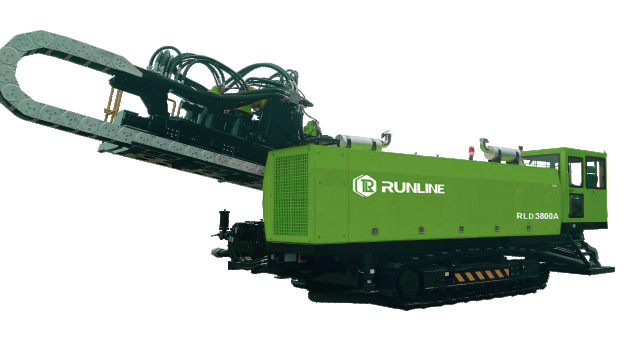

Large Size Horizontal Directional Drilling Machine High Efficiency

Product Details

Place of Origin: CHINA

Brand Name: RUNLINE

Model Number: RLD3800A

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Delivery Time: 5-8 WORKING DAYS

Payment Terms: L/C, T/T

Supply Ability: 10 SETS PER MONTH

Get Best Price
Highlight:
Certification:
ISO9001/CE
Name:
HDD Machine
Keywords:
Horizontal Directional Drilling Machine
Size:
Large
Brand:
RUNLINE
Origin:
CHINA
Certification:
ISO9001/CE
Name:
HDD Machine
Keywords:
Horizontal Directional Drilling Machine
Size:
Large
Brand:
RUNLINE
Origin:
CHINA
Large Size Horizontal Directional Drilling Machine High Efficiency

Main Performance Characteristics:



1. The rotation and thrust is equipped with USA Sauer cloded-circuit system, which is efficient, stable and reliable,

    Rotation motor is originally imported French Poclain brand which is famous all over the world. and push pull

    motor is Germany Rexroth ehich increses work efficiency more than-20%, and totally save about 20% energy

    compared with traditional system.

2. Hydraulic control is adopted for rotation and push&pull, reducing the faults resulted from the aging of electrial

    components, realizing more stable and reliable control and quicker response.

3. It is equipped with Cummins engine specialized in engineering machinery with strong power.

4. Driving head reserves reinforced power (push&pull force), which can be incresed to 1200KN, which ensures

    the safety of the large diameter pipe construction.

5. Four bar linkage luffing structure is adopt for main girder , which highly increases entry angle range and

    ensures the large angle and rig tracks are not off ground,improving the safety performance.

6. Wireless control walking system ensures the safety for walk and transfer.

7. Full lifted is is convenient for loading and unloading drill rod. which can greatly reduce the workers labor

    intensity and improve work efficiency.

8. With φ168×9600mm drill rod, the machine fits medium field area, meeting the requirement for high

    efficiency construction in small downtown district.

9. Main hydraulic components are from the global first class hydraulic manufacturers, which greatly improved

    the reliability of product ferformance and safety.

10. Electric design is reasonable with low failure rate, which is easy to maintain.

11. Push&pull contains rack and pinion push-pull system, which is good for high efficiency, long lifespan, stable

     work and maintainance is also convinient.

12. Steel track with rubber plate can be loaded heavily and walk on all kinds of roads as well.



Technical Specifications:



 Engine  2*264/2200 KW Dimension (L*W*H)  18600X3400X3600mm
 Max thrust force  3800 KN Weight  56 T
 Max Pullback force  3800 KN Diameter if drill rod  Φ140 or 168 mm
 Max Torque  145000 N.M Length of drill rod  9.6m
 Max rotary speed  100 rpm Max dia of pullback pipe  Φ1500 mm
 Max push& pull speed  35 m/min Max construction length  1600 m
 Max mud pump flow  OPTIONAL Incidence angle  11~20°
 Max mud pressure  MA Climbing angle  18°
