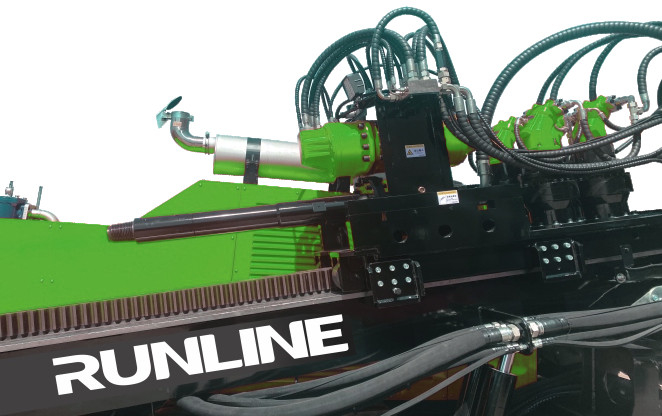

HDD Horizontal Directional Drilling Machine Medium Steel Track

Product Details

Place of Origin: CHINA

Brand Name: RUNLINE

Certification: ISO9001/CE

Model Number: RLD600/1200P

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Delivery Time: 5-8 WORKING DAYS

Payment Terms: L/C, T/T

Supply Ability: 20 SETS PER MONTH

Get Best Price
Highlight:
Name:
HDD Machine
Keywords:
Horizontal Directional Drilling Machine
SIZE:
Medium
STANDARD:
ISO9001/CE
Origin:
CHINA
Brand:
RUNLINE
Name:
HDD Machine
Keywords:
Horizontal Directional Drilling Machine
SIZE:
Medium
STANDARD:
ISO9001/CE
Origin:
CHINA
Brand:
RUNLINE
HDD Horizontal Directional Drilling Machine Medium Steel Track

Main Performance Characteristics:



1. Close - circuit system is adopted for rotation and push &pull both, which increse work efficiency by 15-20%,

and totally save 15-20% energy compared with traditional system.

2. Rotation adopts Poclain motors, realizing more stable and reliable control and quicker response.

3. It is equipped with Cummins engine specialized in engineering machinery with strong power.

4. Four bar linkage luffing structure is adopt for main girder , which highly increases entry angle range and

ensures the large angle and rig tracks are not off ground,improving the safety performance.
5. Wireless walking system ensures the safety for walk and transfer.

6. Newly developed reversible manipulator is convenient for loading and unloading drill rod. which can greatly

reduce the workers labor intensity and improve work efficiency.

7. Applicable for φ 89×3000mm drill rod, the machine fits moderate field area, meeting the requirement for high

efficiency construction in small downtown district.

8. Main hydraulic components are from the international first-class hydraulic components manufacturer, which

can greatly improve the reliability of the product performance and safety.

9. Electric design is reasonable with low failure rate, which is easy to maintain.

10. Rack & pinion model is adopted for push & pull, which ensures high efficiency, stable work and convenient

maintenance.

11.Steel track with rubber plate can be loaded heavily and walk on all kinds of roads.



Technical Specifications:



 Engine  194/2200 KW  Dimension (L*W*H)  9600X2300X2480mm
 Max thrust force  600/1200 KN  Weight  15 T
 Max Pullback force  600/1200 KN  Diameter if drill rod  Φ89 mm
 Max Torque  27000 N.M  Length of drill rod  4.5 m
 Max rotary speed  120 rpm  Max dia of pullback pipe  Φ1500 mm
 Max push& pull speed  48 m/min  Max construction length  800 m
 Max mud pump flow  600 L/min  Incidence angle  11~20°
 Max mud pressure  10 ± 0.5 Mpa  Climbing angle  14°
